Truety Indoor Gateway - Installation Guide
Truety Indoor Gateway - Installation Guide
• Mount the gateway on a flat surface
with M3 screws with 2.4” center
spacing, leaving the screw heads
protruding with a 3 mm gap from the
wall surface.

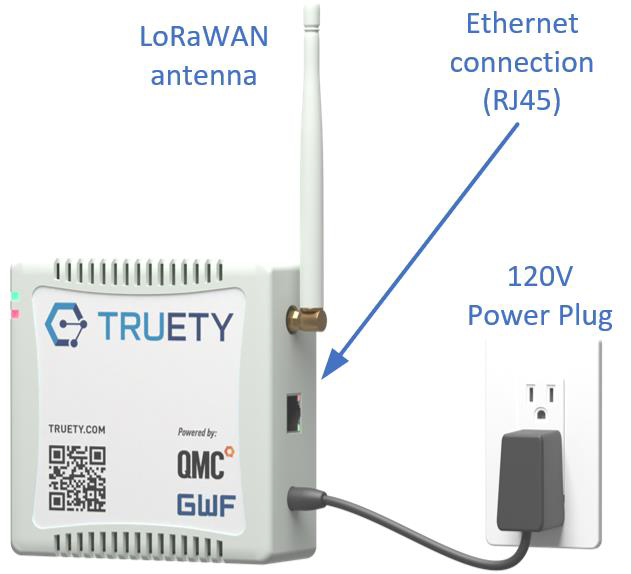

• Connect the LoRaWAN antenna to the
Gateway
• Use the DC power supply provided with
the gateway to power up the Gateway
• Use the Ethernet port to connect the
gateway to the internet
(It can take up to 5 minutes for the gateway to power up and connect to the server)
• Navigate to portal.truety.com and login. If you do not have an account, you will need to register at portal.truety.com/register – you will need to be granted access to your project by an existing user to proceed beyond this step
• Select the “Gateways” option on the left menu
• The status of all gateways accessible to your account is displayed here and updated in real-time. The “Last Uplink” field will indicate when the Truety system last received data from your gateway(s).
* See attached documentation for complete guide and reference.
