MTCoder NTEP Hot & Cold (1", 1.5")

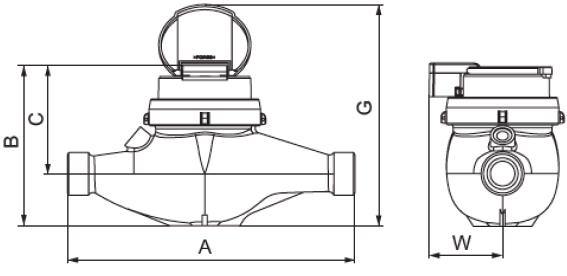

Dimension Diagram
Technical Data
Specifications
|
Nominal pipe size
|
1"
|
1.5"
|
|
Max. flow rate
|
55 gpm
|
88 gpm
|
|
Max. continuous flow rate
|
44 gpm
|
70 gpm
|
|
Min. flow rate (+/- 3 %)
|
0.75 gpm
|
1.5 gpm
|
|
Max. working pressure
|
230 psi
|
230 psi
|
|
Max. working temp.
|
194 °F
|
194 °F
|
|
Connection on meter
|
1¼" NPSM thread
|
2" NPSM thread
|
|
Main case material
|
Brass
|
Brass
|
|
Encoder resolution
|
1/10 gal
|
1/10 gal
|
Dimensions and Weights
|
|
|
1"
|
1.5"
|
|
Length without couplings
|
A
|
10.24"
|
11.81"
|
|
Meter height with lid
|
B
|
5.31"
|
6.30"
|
|
Meter height with lid from pipe centre line
|
C
|
3.58"
|
4.49"
|
|
Installation depth with lid from pipe centre line
|
W
|
2.24"
|
2.68"
|
|
Meter height with open lid
|
G
|
7.20"
|
8.19"
|
|
Weight without couplings
|
|
5.73lbs
|
11.91lbs
|
Operation
|
Permissible ambient temperature
|
+41°F to +131°F
|
|
Current consumption
|
max. 2 M-Bus Loads
|
|
Meter Output Encoder Wired M-Bus
|
EN 13757-2/-3
|
|
Meter Output Encoder ECO (for radio modules)
|
EN 13757-3
|
|
Standard transmission speed
|
2400 baud
|
|
Register protection class
|
IP68
|
|
Cable length
|
16.4 ft
|
Charts

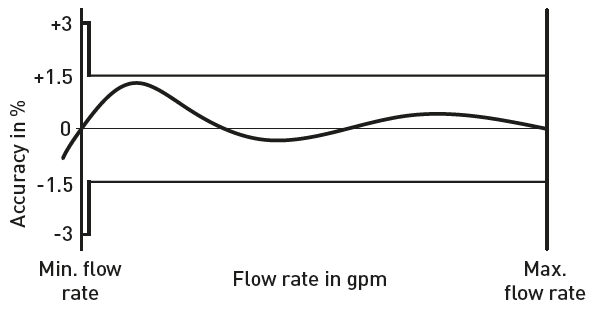

Accuracy

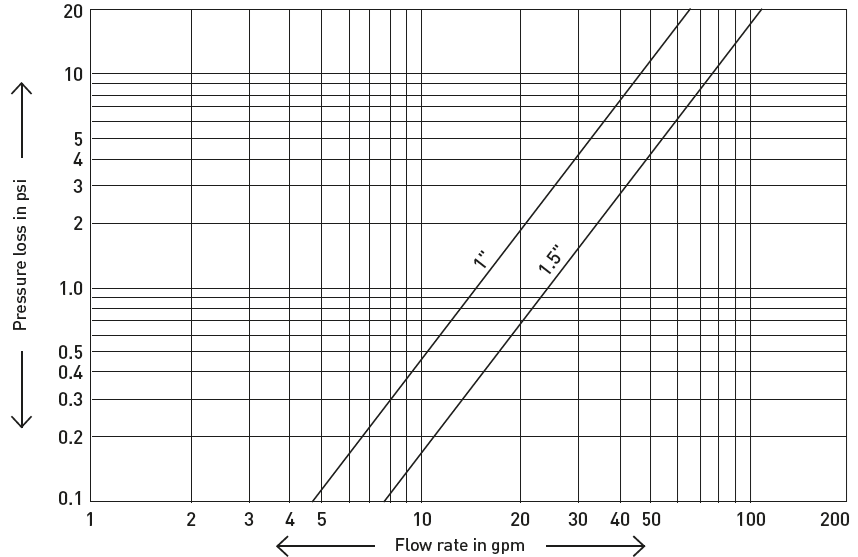

Pressure Loss
Approval
|
NTEP hot No. CC 21-096A1
|
|
NTEP cold No. CC 21-096A1
|
|
New York Certificate No. 10767
|
Certifications
|
NSF/ANSI 61-G & 372 D.Hot / incl. cold
|
Please download attachment for applications and features.
