UnicoCoder NTEP Hot & Cold (3/4")

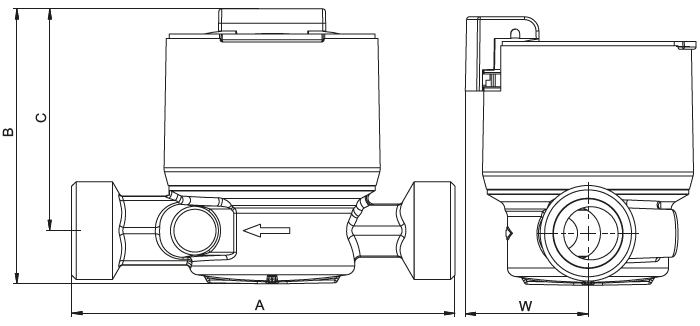

Dimension Diagram
Technical Data
Dimensions and Weights
|
Length without couplings
|
A
|
5.12"
|
|
Height
|
B
|
3.7"
|
|
Height from pipe centre line
|
C
|
3"
|
|
Installation depth from pipe centre line
|
W
|
1.7"
|
|
Weight without couplings
|
|
1.57lbs
|
Execution
|
Nominal pipe size
|
3/4"
|
|
Max. working pressure
|
230psi
|
|
Connection thread on meter
|
1" NPSM
|
|
Nominal flow rate
|
11gpm
|
|
Max. flow rate
|
22gpm
|
|
Min. flow rate
|
0.5gpm
|
|
Max. working temperature
|
+194°F
|
Encoder resolution | 1/10gal |
Main case material | Brass |
Specifications
|
Permissible ambient temperature UNICOcoder MP
|
+41°F to +131°F
|
|
Current consumption
|
max. 2 M-Bus Loads
|
Meter Output Encoder Wired M-Bus | EN 13757-2/-3 |
Meter Output Encoder ECO (for radio modules) | EN 13757-3 |
Standard transmission speed | 2400 baud |
|
Register protection class
|
IP67 or IP68
|
Charts
Accuracy
Pressure Loss
Approval
NTEP cold/hot 33° - 156.7°F No. CC 19-019A2 |
New York Certificate No. 10766 |
Certifications
NSF/ANSI 61-G & 372 D.Hot / incl. cold |
Please download attachment for applications and features.
