UNICOe NTEP Hot & Cold (3/4")

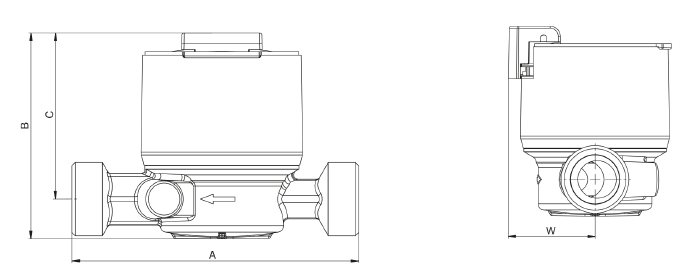

Dimension Diagram
Technical Data
Dimensions and Weights
|
Length without couplings
|
A
|
5.12"
|
|
Height
|
B
|
3.7"
|
|
Height from pipe centre line
|
C
|
3.0"
|
|
Installation depth from pipe centre line
|
W
|
1.7"
|
|
Weight without couplings
|
|
1.5lbs
|
Execution
|
Nominal pipe size
|
3/4"
|
|
Max. operating pressure
|
230psi
|
|
Connection thread on meter
|
1" NPSM
|
|
Permanent flow rate
|
11gpm
|
|
Max. flow rate
|
22gpm
|
|
Min. flow rate
|
0.5gpm
|
|
Starting flow
|
app. 0.07gpm
|
|
Max. operating temperature
|
+194°F
|
Ambient Conditions
|
Ambient temperature
|
+41°F to +131°F
|
|
Transport & Storage temperature
|
-4°F to +158°F
|
|
Register protection class
|
IP67
|
Power Supply
|
Lithium/Mangan battery (not replaceable)
|
3 V DC
|
|
Typical battery lifetime (depending on environment and configuration conditions)
|
Up to 15 years
|
Display
|
Volume unit
|
GAL
|
|
LCD
|
9 digits
|
|
Volume resolution (> 1500 GAL)
|
0.01 GAL
|
|
High volume resolution (0 - 1500 GAL)
|
0.001 GAL
|
|
Flow rate unit
|
GAL/min
|
|
Test bench mode
|
T
|
|
Icon for low battery: 1)
Icon for warning and info codes: 2)
Radio indicator (On(Off) and LoRaWAN connectivity status: 3)
|
|
Charts
Accuracy
Pressure Loss
LoRaWAN
Specifications
|
Regional parameters (Frequency band)
|
US902-928 MHz
ISM Band (902 - 928 MHz) |
|
Transfer protocol (payload)
|
GWF specific
|
|
Radiated power
|
max. 20 dBm (100 mW)
|
|
Class
|
A
|
|
ADR (Adaptive data rate)
|
Yes
|
|
Activation type
|
OTAA
|
Information Data Package
|
DevEUI
|
70B3D538700000AB
|
|
Meter manufacturer
|
GWF
|
|
Medium
|
Water
|
|
Meter S/N
|
23132356
|
|
Absolute meter reading (down to 15 min values)
|
359.76 GAL
|
|
Remaining battery life
|
Semester
|
|
Alarms
|
Meter alarms, Low Battery, Burst pipe, Potential leak, Backflow, No Usage, Max. flow rate exceeded, Min./Max. temperature
|
Approval
NTEP cold/hot No. CC 19-019A2 |
New York Certificate No. 10766 |
FCC ID: 2A4F7-ERH |
Certifications
NSF/ANSI 61-G & 372 D.Hot / incl. cold |
LoRa Alliance Certification (1.0.4 spec.) |
Please download attachment for applications and features.
