Truety Charles Display
Specifications
Technical Data
Panel Size | 7" |
Resolution | 1024x600 |
Aspect Ratio | 16:9 |
Brightness | 300 cd/m2 |
Contrast Ratio | 800:1 |
Luminousness | 90% |

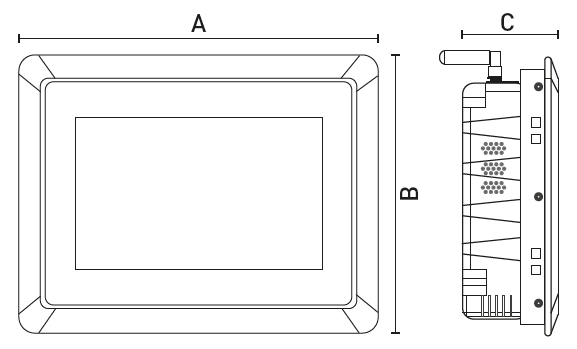

Dimensions and Weights
Length (A) | 8.86" |
Height (B) | 6.37" |
Installation Depth (C) | 2.32" |
Weight | 2.2lbs |
Ambient Conditions
Operating Temperature | + 14 °F to + 140 °F |
Transport & Storage Temperature | -4 °F to + 140 °F |
Screen Protection Class | IP65 |
Power Supply
External Power Supply | AC 100 - 240 V |
Working Voltage | DC 12 V |
Approvals
Regulatory | CTEP No. 5879a-23 |
Please download attachment for applications and features.
