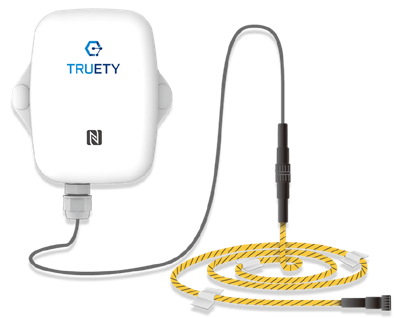

Truety Leak Sensor

Truety Leak Sensor

Specifications


Leak Detection

Liquid Type
Conducting Liquid
Trigger Condition
When Liquid Level Reaches .2”
Detection Cable
10Ft (Customizable)

Wireless Transmission

Technology
LoRaWAN®
Frequency
US915
Tx Power
20 dBm
Sensitivity
-137dBm @300bps
Mode
OTAA/ABP Class A

Physical Characteristics

Power Supply
2 × 4000 mAh ER18505 Li-SOCL₂ Batteries
Battery Life
10 years (10 min interval + 24 triggers per day)
Operating Temperature
-22°F to +158°F
Relative Humidity
0% to 100% (non-condensing)
Ingress Protection
IP67
Dimension
4.16 × 3.36 × 1.06 in
Installation
Wall Mounting

Sensors

Temperature

Range
-22°F to +158°F
Accuracy
32°F to +158°F (+/- 0.3°K), -22°F to 32°F (+/- 0.6°K)
Resolution
0.1°K

Humidity

Operating Principle
Digital CMOSens® technology (MEMS)
Range
0% - 100% RH
Accuracy
± 2% RH
Resolution
0.5% RH

Operation

Power On & Off
NFC, Power Button (Internal)
Configuration
NFC Configuration via Mobile App
Advanced Feature
Data Storage, Data Retransmission

Approvals

Regulatory
CE, FCC
Environmental
RoHS

Please download attachment for applications and features.
