Truety LoRaWAN Indoor Gateway
Technical and Functional System Specifications
Mechanical Parameters
MTBF | 830,000 hours |
DC Power Consumption | 7 W |
Operational Temperature | 32°F to +104°C |
Operational Humidity | 5% to 95% Condensing |
Ingress Protection | IP30 |

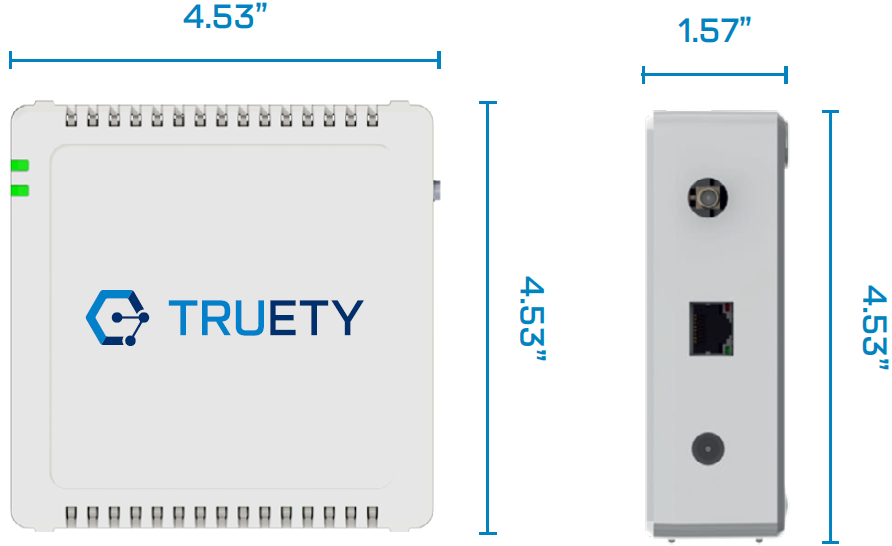

Size | 4.53” x 4.53” x 1.57” |
Weight | 350 g (200 g without battery) |
Interfaces
Ethernet Backhaul | RJ-45 (10/100 BaseT) |
Cellular Backhaul (3G/4G) | (Internal Antenna) |
LoRa Antenna | SMA-RC |
Power | 12V / 1A Adapter |
LoRa Radio Parameters
ISM Bands | NA915 |
Tx Power | 14 dBm to 27 dBm |
Rx Sensitivity | -139.5 dBm (SF12, 293 bits/sec) |
Rx Noise Figure | 3.5 dB |
Rx Linearity | -10 dBm |
Rx Dynamic Range | 70 dB Analog, 100+ dB Digital |
Regulatory Compliance
Safety | IEC 60950-1 (CE) |
Environmental | ETSI EN 300 019-2 |
Regulatory | ETSI EN 55022 Class Bsec) ETSI EN 55024 ETSI EN 300 489-1/-3 |
Please download attachment for applications and features.
