Truety LoRaWAN Outdoor Gateway
Technical and Functional System Specifications
Mechanical Parameters
|
MTBF
|
450,000 hours
|
|
DC Power Consumption
|
‹ 7 W
|
|
Operational Temperature
|
-40°F to +140°F
|
|
Operational Humidity
|
10% to 100% Condensing
|
|
Ingress Protection
|
IP67
|
|

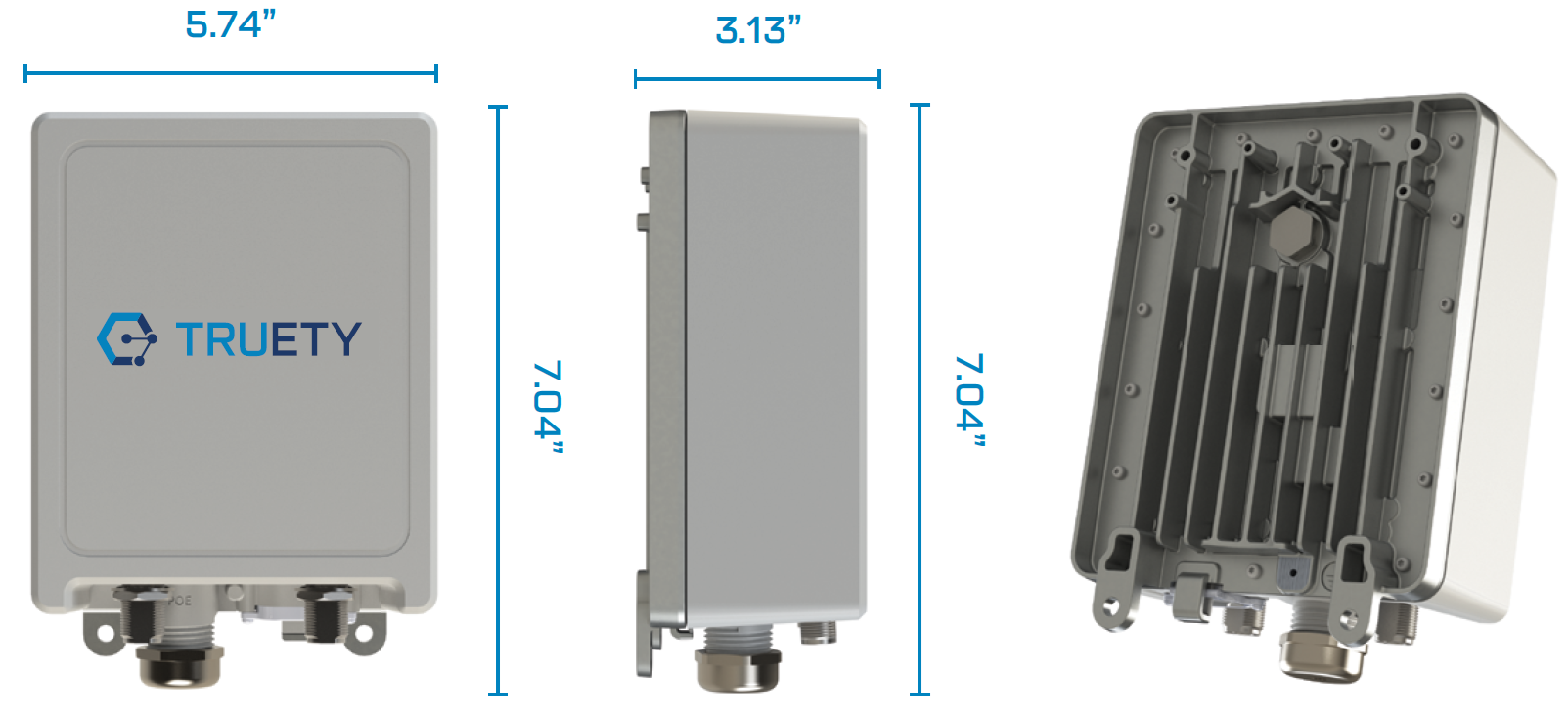

Size
|
5.74” x 7.04” x 3.13”
|
|
Weight
|
2.65 lbs
|
Interfaces
|
Ethernet Backhaul
|
RJ-45 (10/100 BaseT)
|
|
Cellular Backhaul (3G/4G)
|
Internal with optional External
|
|
LoRa Antenna
|
N-Type
|
|
Power
|
802.3af PoE or Passive PoE at 37 to 57 VDC
|
LoRa Radio Parameters
|
ISM Bands
|
All Global Bands
|
|
Tx Power
|
14 dBm to 27 dBm
|
|
Rx Sensitivity
|
-139.5 dBm (SF12, 293 bits/sec)
|
|
Rx Noise Figure
|
2.5 dB
|
| Rx Linearity |
-5 dBm
|
|
Rx Dynamic Range
|
70 dB Analog, 100+ dB Digital
|
Regulatory Compliance
|
Safety
|
IEC 62368-1 (CE)
|
|
Environmental
|
ETSI EN 300 019-2
|
|
Regulatory
|
ETSI EN 55022 Class B
ETSI EN 55024
ETSI EN 300 489-1/-3
|
Please download attachment for applications and features.
