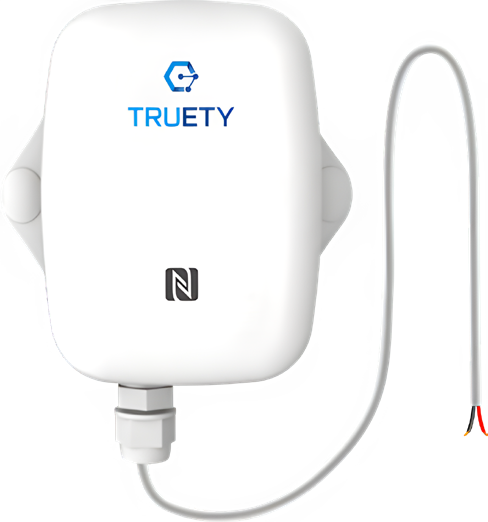

Truety Pulse Collector
Specifications
Measurement
|
Port
|
1 × GPIO Interface, Dry Contact
|
|
Work Mode
|
Pulse Counter, Digital Input
|
|
Cable Length
|
3Ft (Customizable)
|
|
Applicable Meters
|
Reed switches meters or any other passive pulse meters
|
Wireless Transmission
|
Technology
|
LoRaWAN®
|
|
Frequency
|
US915
|
|
Tx Power
|
20 dBm
|
|
Sensitivity
|
-137dBm @300bps
|
|
Mode
|
OTAA/ABP Class A
|
Physical Characteristics
|
Power Supply
|
2 × 4000 mAh ER18505 Li-SOCL₂ Battery
|
|
Battery Life
|
10 years (10 min interval + 12 pulse counts per day)
|
|
Operating Temperature
|
-22°F to +158°F
|
|
Relative Humidity
|
≤95% (non-condensing)
|
|
Ingress Protection
|
IP67
|
|
Dimension
|
4.16 × 3.36 × 1.06 in
|
Sensors
Temperature
|
Range
|
-22°F to +158°F
|
|
Accuracy
|
32°F to +158°F (+/- 0.3°K), -22°F to 32°F (+/- 0.6°K)
|
|
Resolution
|
0.1°K
|
Humidity
|
Range
|
0% to 100% RH
|
|
Accuracy
|
10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
|
|
Resolution
|
0.5% RH
|
Carbon Dioxide (CO²)
|
Operating Principle
|
Digital CMOSens® technology (MEMS)
|
|
Range
|
0% - 100% RH
|
|
Accuracy
|
± (30 ppm + 3 % of reading) (32°F to +122°F)
|
|
Resolution
|
1 ppm
|
Operation
|
Power On & Off
|
NFC, Power Button (Internal)
|
|
Configuration
|
NFC Configuration via Mobile App
|
Please download attachment for applications and features.
