UnicoCoder NTEP H200 (3/4")

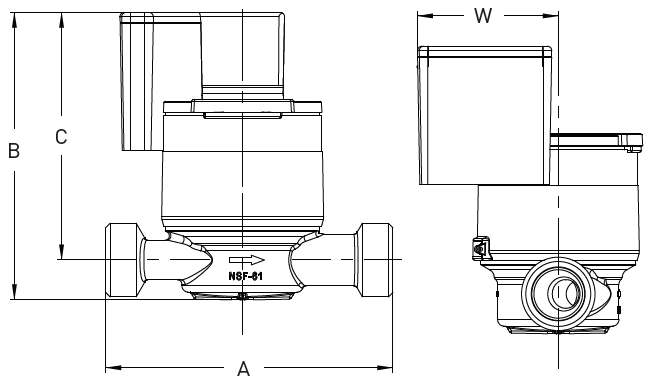

Dimension Diagram
Technical Data
Dimensions and Weights
|
Length without couplings
|
A
|
5.12"
|
|
Height
|
B
|
5.2" (allow 20mm for open lid)
|
|
Height from pipe centre line
|
C
|
4.4" (allow 20mm for open lid)
|
|
Installation depth from pipe centre line
|
W
|
2.5"
|
|
Weight without couplings
|
|
1.79lbs
|
Execution
|
Nominal pipe size
|
3/4"
|
|
Max. operating pressure
|
230psi
|
|
Connection thread on meter
|
1" NPSM
|
|
Permanent flow rate
|
11gpm
|
|
Max. flow rate
|
22gpm
|
|
Min. flow rate
|
0.5gpm
|
|
Max. operating temperature
|
+194°F
|
Ambient Conditions
|
Ambient temperature
|
+41°F to +131°F
|
|
Transport & Storage temperature
|
+5°F to +149°F
|
|
Register protection class
|
IP68
|
Power Supply
|
Lithium/Mangan battery (not replaceable)
|
3 V DC
|
|
Typical battery lifetime (depending on environment and configuration conditions)
|
Up to 15 years
|
Charts

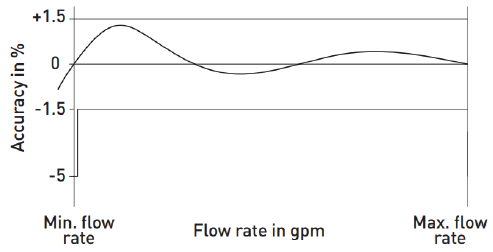

Accuracy

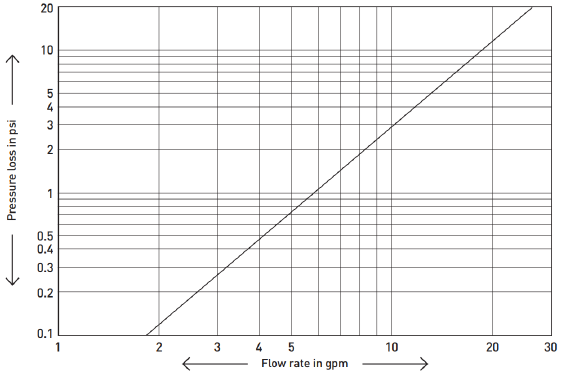

Pressure Loss
LoRaWAN
Specifications
|
Regional parameters (Frequency band)
|
US902-928 MHz
ISM Band (902 - 928 MHz) |
|
Transfer protocol (payload)
|
GWF specific
|
|
Radiated power
|
max. 20 dBm (100 mW)
|
|
Class
|
A
|
|
ADR (Adaptive data rate)
|
Yes
|
|
Activation type
|
OTAA
|
Approval | FCC ID: 28165-RCMH200 |
Information Data Package
|
DevEUI
|
70B3D538700000AB
|
|
Meter manufacturer
|
GWF
|
|
Medium
|
Water
|
|
Meter S/N
|
23123456
|
|
Absolute meter reading (down to 15 min values)
|
35.9 US gallons
|
|
Remaining battery life
|
Semester
|
|
Alarms
|
Battery, LoRaWAN link error, Continuous flow / leak, Backflow, Burst pipe, No Usage
|
Status | Manipulation |
Approval
NTEP cold/hot No. CC 19-019A2 |
New York Certificate No. 10766 |
Certifications
NSF/ANSI 61-G & 372 D.Hot / incl. cold |
LoRa Alliance Certification (1.0.4 spec.) |
Please download attachment for applications and features.
