Radio Module

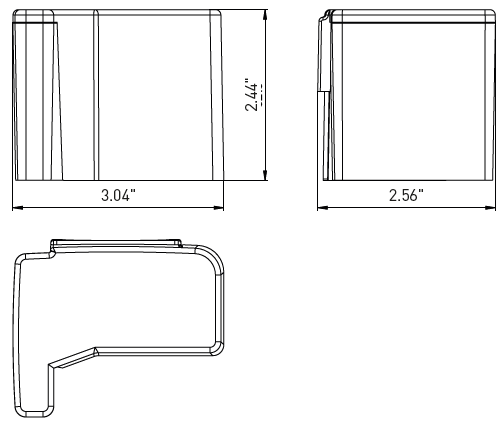

Dimension Diagram
Radio module RCM®-H200 Specifications
Meter interface | Meter with GWFcoder® MP register with ECO interface |
Regional Parameters (Frequency band) | US902-928 MHz ISM Band (902 – 928 MHz) AU915-928 MHz Band (915 – 928 MHz) |
Transfer protocol (payload) | GWF specific |
Radiated power | max. 20 dBm (100 mW) |
LoRaWAN class | A |
ADR | Yes |
Activation type | OTAA |
Approval | FCC and IC |
Protection class | Split execution: IP68 Compact execution: IP67 |
Cable length | Split execution: 3.28 ft Compact execution: no cable |
Cable extension (only split) | max. 65.6 ft |
Power Supply
Battery | 1 x Lithium 3,0 V (not replaceable) |
Typical battery lifetime | Up to 15 years (depending on environment and configuration conditions) |
Ambient Conditions
Operational temperature | 5 to 131 °F |
Storage temperature | 5 to 149 °F |
Information data package
Data (example) MTKcoder® MP | |
DevEUI RCM®-H200 | 70B3D538700000AB |
Meter manufacturer* | GWF |
Medium* | Water |
Meter number* | 18215678 |
Absolute meter reading* (up to 15 min. values) | 359.7 US gallons |
| Remaining battery life | Semester |
Warnings | Battery, LoRaWANTM link error, continuous flow / leak, backflow, pipe burst, no usage |
Status* | Manipulation |
*This data is read directly from the GWFcoder® MP register
Please download attachment for applications and features.
